# 拖拽组件
拖拽组件包含 Draggable 、LongPressDraggable 和 DragTarget。
Draggable、LongPressDraggable 为可拖拽的组件，LongPressDraggable 继承自Draggable，因此用法和 Draggable 完全一样，唯一的区别就是 LongPressDraggable 触发拖动的方式是长按，而 Draggable 触发拖动的方式是按下。
DragTarget 为拖拽组件的目的地组件。
# Draggable
Draggable 基础用法：
Draggable(
child: Container(
height: 100,
width: 100,
alignment: Alignment.center,
decoration: BoxDecoration(
color: Colors.red,
borderRadius: BorderRadius.circular(10)
),
child: Text('孟',style: TextStyle(color: Colors.white,fontSize: 18),),
),
feedback: Container(
height: 100,
width: 100,
alignment: Alignment.center,
decoration: BoxDecoration(
color: Colors.blue,
borderRadius: BorderRadius.circular(10)
),
child: Text('孟',style: TextStyle(color: Colors.white,fontSize: 18),),
),
)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
蓝色的组件是feedback，如果想在拖动的时候子组件显示其他样式可以使用childWhenDragging参数，用法如下：
Draggable(
childWhenDragging: Container(
height: 100,
width: 100,
alignment: Alignment.center,
decoration: BoxDecoration(
color: Colors.grey, borderRadius: BorderRadius.circular(10)),
child: Text(
'孟',
style: TextStyle(color: Colors.white, fontSize: 18),
),
),
...
)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14
控制拖动的方向，比如只允许垂直方向移动，代码如下：
Draggable(
axis: Axis.vertical,
...
)
1
2
3
4
5
2
3
4
5
Draggable组件为我们提供了4中拖动过程中的回调事件，用法如下：
Draggable(
onDragStarted: (){
print('onDragStarted');
},
onDragEnd: (DraggableDetails details){
print('onDragEnd:$details');
},
onDraggableCanceled: (Velocity velocity, Offset offset){
print('onDraggableCanceled velocity:$velocity,offset:$offset');
},
onDragCompleted: (){
print('onDragCompleted');
},
...
)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
说明如下：
- onDragStarted：开始拖动时回调。
- onDragEnd：拖动结束时回调。
- onDraggableCanceled：未拖动到DragTarget控件上时回调。
- onDragCompleted：拖动到DragTarget控件上时回调。
Draggable有一个data参数，这个参数是和DragTarget配合使用的，当用户将控件拖动到DragTarget时此数据会传递给DragTarget。
# DragTarget
DragTarget就像他的名字一样，指定一个目的地，Draggable组件可以拖动到此控件，用法如下：
DragTarget(
builder: (BuildContext context, List<dynamic> candidateData,
List<dynamic> rejectedData) {
...
}
)
1
2
3
4
5
6
7
2
3
4
5
6
7
当onWillAccept返回true时， candidateData参数的数据是Draggable的data数据。
当onWillAccept返回false时， rejectedData参数的数据是Draggable的data数据，
DragTarget有3个回调，说明如下：
- onWillAccept：拖到该控件上时调用，需要返回true或者false，返回true，松手后会回调onAccept，否则回调onLeave。
- onAccept：onWillAccept返回true时，用户松手后调用。
- onLeave：onWillAccept返回false时，用户松手后调用。
var _dragData;
Widget build(BuildContext context) {
return Center(
child: Column(
children: <Widget>[
_buildDraggable(),
SizedBox(
height: 200,
),
DragTarget<Color>(
builder: (BuildContext context, List<Color> candidateData,
List<dynamic> rejectedData) {
print('candidateData:$candidateData,rejectedData:$rejectedData');
return _dragData == null
? Container(
height: 100,
width: 100,
alignment: Alignment.center,
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(10),
border: Border.all(color: Colors.red)),
)
: Container(
height: 100,
width: 100,
alignment: Alignment.center,
decoration: BoxDecoration(
color: Colors.red,
borderRadius: BorderRadius.circular(10)),
child: Text(
'孟',
style: TextStyle(color: Colors.white, fontSize: 18),
),
);
},
onWillAccept: (Color color) {
print('onWillAccept:$color');
return true;
},
onAccept: (Color color) {
setState(() {
_dragData = color;
});
print('onAccept:$color');
},
onLeave: (Color color) {
print('onLeave:$color');
},
),
],
),
);
}
_buildDraggable() {
return Draggable(
data: Color(0x000000FF),
child: Container(
height: 100,
width: 100,
alignment: Alignment.center,
decoration: BoxDecoration(
color: Colors.red, borderRadius: BorderRadius.circular(10)),
child: Text(
'孟',
style: TextStyle(color: Colors.white, fontSize: 18),
),
),
feedback: Container(
height: 100,
width: 100,
alignment: Alignment.center,
decoration: BoxDecoration(
color: Colors.blue, borderRadius: BorderRadius.circular(10)),
child: DefaultTextStyle.merge(
style: TextStyle(color: Colors.white, fontSize: 18),
child: Text(
'孟',
),
),
),
);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86

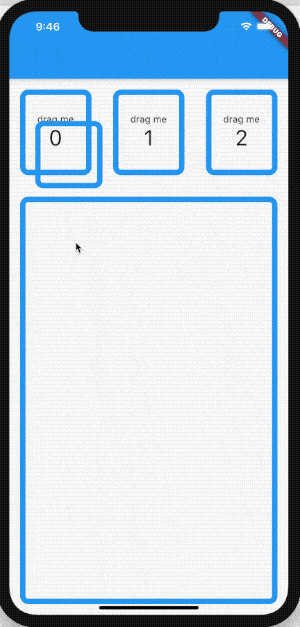

Flutter 1.20 DragTarget 版本新增了精确下落位置，通过 DragTarget onAcceptDetails 方法获得该信息，下面是官方提供的相关用法：
import 'dart:ui' as ui;
import 'package:flutter/material.dart';
const _strokeWidth = 8.0;
///
/// desc:
///
class DragTargetDetailsExample extends StatefulWidget {
_DragTargetDetailsExampleState createState() =>
_DragTargetDetailsExampleState();
}
class _DragTargetDetailsExampleState extends State<DragTargetDetailsExample> {
static const _feedbackSize = Size(100.0, 100.0);
static const _padding = 16.0;
static final _decoration = BoxDecoration(
border: Border.all(
color: Colors.blue,
width: _strokeWidth,
),
borderRadius: BorderRadius.circular(12),
);
Offset _lastDropOffset;
int _lastDropIndex;
Widget _buildSourceRowChild(int index) => Expanded(
child: Padding(
padding: EdgeInsets.all(_padding),
child: Draggable<int>(
data: index,
dragAnchor: DragAnchor.pointer,
feedback: Transform.translate(
offset: Offset(
-_feedbackSize.width / 2.0, -_feedbackSize.height / 2.0),
child: Container(
decoration: _decoration,
width: _feedbackSize.width,
height: _feedbackSize.height)),
child: Container(
decoration: _decoration,
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Text('drag me'),
Text('$index', style: TextStyle(fontSize: 32.0))
])))));
void _handleAcceptWithDetails(
BuildContext dragTargetContext, DragTargetDetails details) {
// Convert global to local coordinates.
RenderBox renderBox = dragTargetContext.findRenderObject();
final localOffset = renderBox.globalToLocal(details.offset);
setState(() {
_lastDropOffset = localOffset;
_lastDropIndex = details.data;
});
}
Widget _buildDragTargetChild() => Padding(
padding: EdgeInsets.all(_padding),
child: Container(
decoration: _decoration,
// Note use of builder to get a context for the [DragTarget] which is
// available to pass to [_handleAcceptWithDetails].
child: Builder(
builder: (targetContext) => DragTarget<int>(
builder: (_, candidateData, __) => Container(
color: candidateData.isNotEmpty
? Color(0x2200FF00)
: Color(0x00000000),
child: CustomPaint(
painter: _Painter(_lastDropOffset, _lastDropIndex))),
onAcceptWithDetails: (details) =>
_handleAcceptWithDetails(targetContext, details)))));
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(),
body: Column(crossAxisAlignment: CrossAxisAlignment.stretch, children: [
Expanded(
flex: 1,
child: Row(
children: List<Widget>.generate(3, _buildSourceRowChild))),
Expanded(flex: 4, child: _buildDragTargetChild())
]));
}
}
class _Painter extends CustomPainter {
static final _diameter = 24.0;
static final _linePaint = Paint()
..style = PaintingStyle.stroke
..strokeWidth = _strokeWidth
..color = Colors.blue;
static final _whiteFillPaint = Paint()
..style = PaintingStyle.fill
..color = Colors.white;
static final _blueFillPaint = Paint()
..style = PaintingStyle.fill
..color = Colors.blue;
final Offset _offset;
final int _index;
_Painter(this._offset, this._index);
void paint(Canvas canvas, Size size) {
if (_offset == null || _index == null) return;
canvas.drawLine(
Offset(_offset.dx, 0.0), Offset(_offset.dx, size.height), _linePaint);
canvas.drawLine(
Offset(0.0, _offset.dy), Offset(size.width, _offset.dy), _linePaint);
canvas.drawCircle(_offset, _diameter + _strokeWidth, _blueFillPaint);
canvas.drawCircle(_offset, _diameter, _whiteFillPaint);
final paragraphBuilder =
ui.ParagraphBuilder(ui.ParagraphStyle(textAlign: TextAlign.center))
..pushStyle(ui.TextStyle(
fontStyle: FontStyle.normal,
color: Colors.blue,
fontSize: _diameter))
..addText('$_index');
final paragraph = paragraphBuilder.build();
paragraph.layout(ui.ParagraphConstraints(width: _diameter));
canvas.drawParagraph(
paragraph, _offset - Offset(_diameter / 2.0, _diameter / 2.0));
}
bool shouldRepaint(_Painter oldPainter) => false;
}
