InteractiveViewer 是 Flutter 1.20 新增的组件，用户可以通过拖动以平移、缩放和拖放子组件。

InteractiveViewer(
  child: Image.asset('assets/images/go_board_09x09.png'),
)

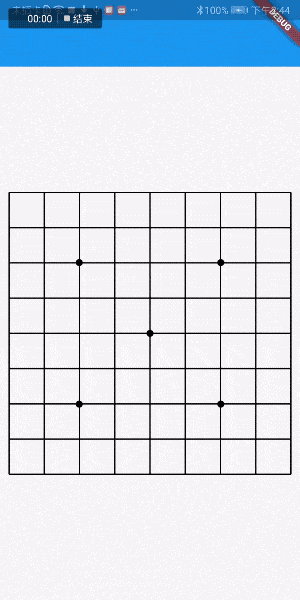

alignPanAxis 参数表示是否只在水平和垂直方向上拖拽，默认为false，设置为true，无法沿着对角线（斜着）方向移动。

InteractiveViewer(
  alignPanAxis: true,
  child: Image.asset('assets/images/go_board_09x09.png'),
)

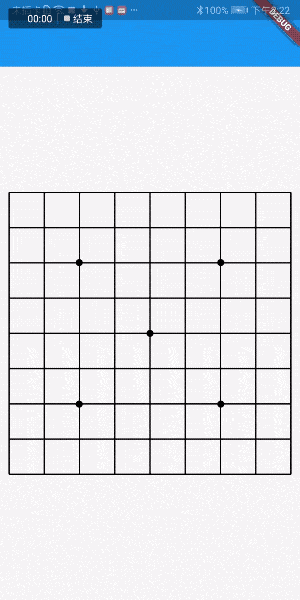

maxScale 、minScale、scaleEnabled 是缩放相关参数，分别表示最大缩放倍数、最小缩放倍数、是否可以缩放：

InteractiveViewer(
  maxScale: 2,
  minScale: 1,
  scaleEnabled: true,
  child: Image.asset('assets/images/go_board_09x09.png'),
)

constrained 参数表示组件树中的约束是否应用于子组件，默认为true，如果设为true，表示子组件是无限制约束，这对子组件的尺寸比 InteractiveViewer 大时非常有用，比如子组件为滚动系列组件。

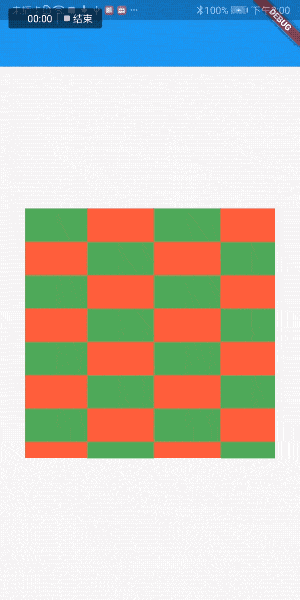

如下的案例，子组件为 Table，Table 尺寸大于屏幕，必须将constrained设置为 false 以便将其绘制为完整尺寸。超出的屏幕尺寸可以平移到视图中。

class InteractiveViewerDemo extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    const int _rowCount = 20;
    const int _columnCount = 10;
    return Scaffold(
      appBar: AppBar(),
      body: Center(
        child: Container(
          height: 300,
          width: 300,
          child: InteractiveViewer(
            constrained: false,
            child: Table(
              columnWidths: <int, TableColumnWidth>{
                for (int column = 0; column < _columnCount; column += 1)
                  column: const FixedColumnWidth(100.0),
              },
              children: <TableRow>[
                for (int row = 0; row < _rowCount; row += 1)
                  TableRow(
                    children: <Widget>[
                      for (int column = 0; column < _columnCount; column += 1)
                        Container(
                          height: 50,
                          color: row % 2 + column % 2 == 1
                              ? Colors.red
                              : Colors.green,
                        ),
                    ],
                  ),
              ],
            ),
          ),
        ),
      ),
    );
  }
}

回调事件：

• onInteractionStart：当用户开始平移或缩放手势时调用。
• onInteractionUpdate：当用户更新组件上的平移或缩放手势时调用。
• onInteractionEnd：当用户在组件上结束平移或缩放手势时调用。

InteractiveViewer(
  child: Image.asset('assets/images/go_board_09x09.png'),
  onInteractionStart: (ScaleStartDetails scaleStartDetails){
    print('onInteractionStart:$scaleStartDetails');
  },
  onInteractionUpdate: (ScaleUpdateDetails scaleUpdateDetails){
    print('onInteractionUpdate:$scaleUpdateDetails');
  },
  onInteractionEnd: (ScaleEndDetails endDetails){
    print('onInteractionEnd:$endDetails');
  },
)

通过 Matrix4 矩阵对其进行变换，比如左移、放大等，添加变换控制器：

final TransformationController _transformationController =
      TransformationController();

InteractiveViewer(
  child: Image.asset('assets/images/go_board_09x09.png'),
  transformationController: _transformationController,
)

放大变换：

var matrix = _transformationController.value.clone();
matrix.scale(1.5, 1.0, 1.0);
_transformationController.value = matrix;

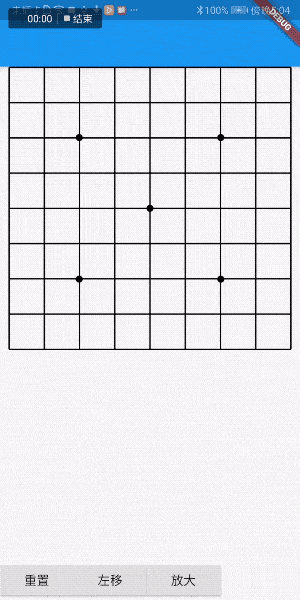

完整代码：

import 'dart:math';

import 'package:flutter/material.dart';

///
/// desc:
///

class InteractiveViewerDemo extends StatefulWidget {
  @override
  _InteractiveViewerDemoState createState() => _InteractiveViewerDemoState();
}

class _InteractiveViewerDemoState extends State<InteractiveViewerDemo> {
  final TransformationController _transformationController =
      TransformationController();

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(),
      body: Column(
        children: [
          Container(
            padding: EdgeInsets.symmetric(horizontal: 10.0),
            child: Center(
              child: InteractiveViewer(
                child: Image.asset('assets/images/go_board_09x09.png'),
                transformationController: _transformationController,
              ),
            ),
          ),
          Expanded(
            child: Container(),
          ),
          Row(
            children: [
              RaisedButton(
                child: Text('重置'),
                onPressed: () {
                  _transformationController.value = Matrix4.identity();
                },
              ),
              RaisedButton(
                child: Text('左移'),
                onPressed: () {
                  var matrix = _transformationController.value.clone();
                  matrix.translate(-5.0);
                  _transformationController.value = matrix;
                },
              ),
              RaisedButton(
                child: Text('放大'),
                onPressed: () {
                  var matrix = _transformationController.value.clone();
                  matrix.scale(1.5, 1.0, 1.0);
                  _transformationController.value = matrix;
                },
              ),
            ],
          ),
        ],
      ),
    );
  }
}
